Standard
  • American ACI-318
  • British BS4449
  • Europe AFCAB
  • Tensile Strength: 800mpa-1050mpa
  • Yield Strength: 600-750mpa
  • Permanent elongation test: <0.1

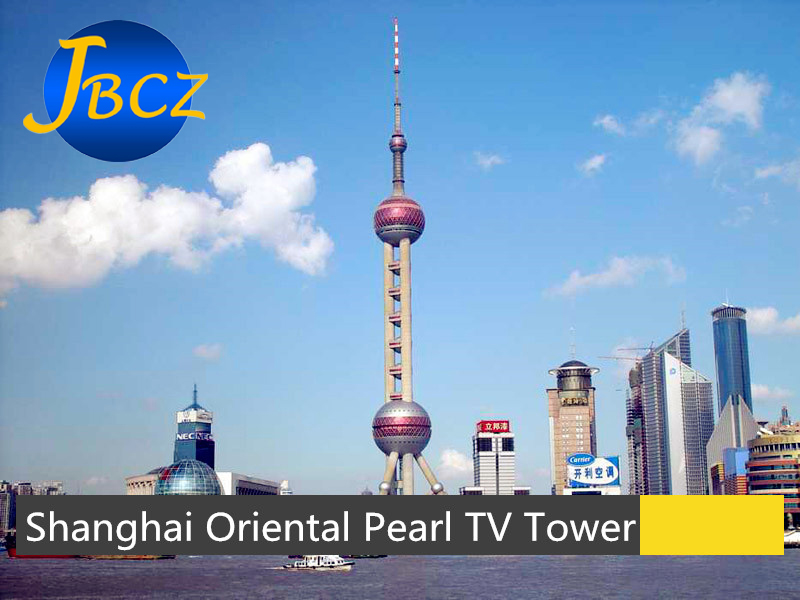

Shanghai Oriental pearl TV Tower

Shanghai Oriental pearl TV Tower

Have already visited: 05/04/2017

is a TV tower in Shanghai. Its location at the tip of Lujiazui in the Pudong New Areaby the side of Huangpu River, opposite The Bund, makes it a distinct landmark in the area. Its principal designers were Jiang Huan Chen, Lin Benlin, and Zhang Xiulin. Construction began in 1991, and the tower was completed in 1994.

Reinforcement couplers for Shanghai Oriental pearl TV Tower

At 468 m (1,535 feet) high, it was the tallest structure in China from 1994–2007, when it was surpassed by the Shanghai World Financial Center. It is classified as an AAAAA scenic area by the China National Tourism Administration. The tower is brightly lit in different LED sequences at night. On 7 July 2007, Oriental Pearl Tower was host to the Chinese Live Earth concert.

The tower features 11 spheres, big and small. The two largest spheres, along the length of the tower, have diameters of 50 m (164 ft) for the lower and 45 m (148 ft) for the upper. They are linked by three columns, each 9 m (30 ft) in diameter. The highest sphere is 14 m (46 ft) in diameter.

The entire tower is supported by three enormous columns that start underground.

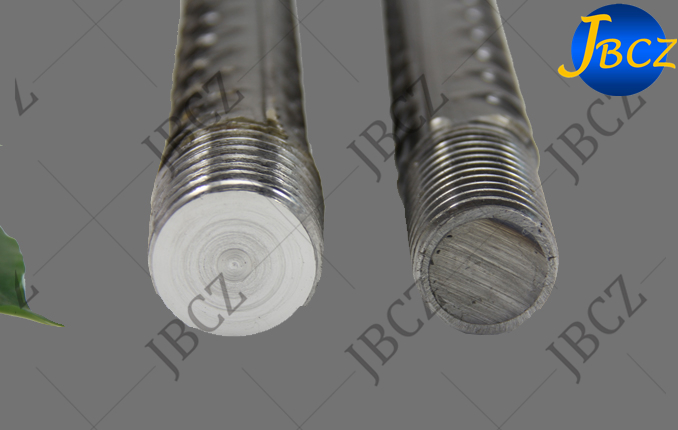

Reinforcement couplers
