Standard
  • American ACI-318
  • British BS4449
  • Europe AFCAB
  • Tensile Strength: 800mpa-1050mpa
  • Yield Strength: 600-750mpa
  • Permanent elongation test: <0.1

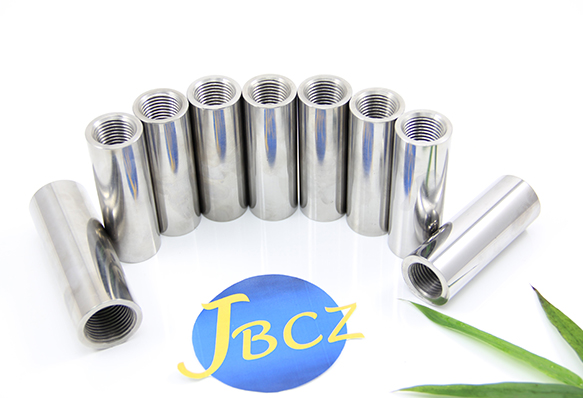

Stainless steel rebar couplers
  • Brief Introduction:
    JBCZ products have been to :
    UAE,New Zealand, Mexico, Colombia, France, Canada, Australia, Poland, Russia, Ukraine, Brazil, Korea, Thailand, India, Singapore, Malaysia, Vietnam, Qatar, Kuwait, Iran,...
    E-mail: jb@jbcz.com
  • Share:
  • Inquiry Now
    • Stainless steel rebar couplers
    • Stainless steel rebar couplers
    • Stainless steel rebar couplers
    • Stainless steel rebar couplers
    • Stainless steel rebar couplers
    • Stainless steel rebar couplers
Quick Detail:

Product Description

Product Description about Stainless steel rebar couplers

Taper thread rebar couplers are suitable for the majority of applications which require the steel rebar connection.

Providing assembles to the end of thread rebar usually, and only need to use the calibration of torque wrench to mix and tight the two contiguous steel bars together.



The design of JBCZ taper thread rebar coupler is suitable for concrete structure, it satisfies the requirements of BS EN 1992-1-1:2004(Eurocode 2) and BS8110 mechanical connection. the connection of Stainless steel rebar couplers



Certification

UK CARES technical report No. TA1-B (Size 12MM 40MM

DIBt approval No. Z-1.5-179. (Size 12MM 40MM)


Note: not all types and sizes of rebar couplers are related to the national certificates shown. The type and size of rebar coupers and the details of each national certificates, it can require to reference related certificate documents.


TTS Standard Rebar Couplers

The design of JBCZ Standard taper thread rebar couplerc is used to connect two same diameters steel bar and the one can rotate. They are suitable the range of steel bar is from 12MM to 40MM.


The size of tapered thread rebar couplers:


Size Outer Diameter
Length Net Weight(kg) Tensile strength  Yield strength
16
61 0.136

620mpa

750mpa

420mpa

550mpa

20
88 0.332
25 35 96 0.523
32 45 107 0.953
40 55 131
1.674

We can also provide cryogenic rebar splice for LNG project .

Matched reinforcing taper thread machine



A standard, Chinese Standard

processing machine for Stainless steel rebar couplers


B standard, European Standard

Please consult JBCZ customer service


The introduction of international application projects

Our products can applied to bridge rebar splice, Nuclear power engineering rebar splice, Seawater desalination rebar connection, LNG project rebar splice, Metro rebar connection, High tower rebar connection, Viaduct rebar connection and etc.

Russian Federal Building is the landmark building of Moscow, the tallest building construction in European steel concrete structure.

Application projects of Stainless steel rebar couplers


Brief introduction of projects

In July 2005, China State Construction Engineering Corporation signed contract with Russian Mirax Group, China State Construction Engineering Corporation contracted the Federal Building A tower. The high of A tower is 354 meters and nearly about 100 floors, it is the tallest building in Europe and also the tallest building in world-wide reinforced concert structure. The total amount if A tower project contract is 58,000,000USD, it planed to complete structure construction in 2008.

East Tower, pinnacle: 506 m, roof: 360 m, floor: 93
