Home > Products > Upset forging parallel thread connection
Standard
  • American ACI-318
  • British BS4449
  • Europe AFCAB
  • Tensile Strength: 800mpa-1050mpa
  • Yield Strength: 600-750mpa
  • Permanent elongation test: <0.1
Type 2 rebar coupler
    • Type 2 rebar coupler
    • Type 2 rebar coupler
    • Type 2 rebar coupler
    • Type 2 rebar coupler
    • Type 2 rebar coupler
    • Type 2 rebar coupler
Quick Detail:

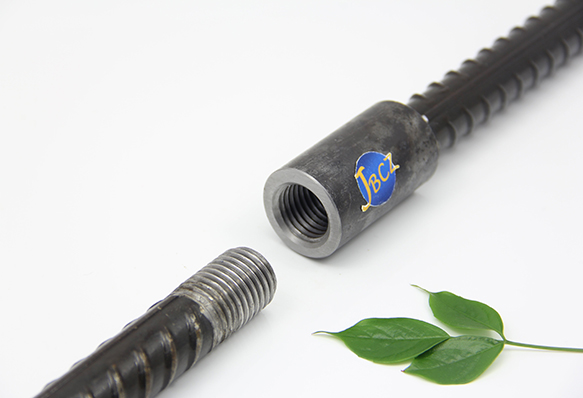

Upset forging parallel thread coupler(black surface,white surface,light surface)


Upset forging parallel thread coupler is the best quality rebar connection in the world. With the connection quality that the strength is 100% higher than bar material,many standards in the world set this kind of connection as the highest Grade I connection specification. The upset forging parallel thread connection originated from a French company who is the world's first developer of rebar connections. For this world recoganized Grade I connection, it is widely used in world's highest quality projects, such as the world's tallest building Burj Khalifa, the world's longest sea-crossing bridge Jiaozhou Bay Sea-Crossing Bridge. With advantages of high quality, fast connecting speed, competitive price, it firmly occupy the whole area of rebar mechanical connector.



Meet Chinese standard(JGJ107), American standard(ACI318, ACI349, AC-133, ICC-ES), British standard(BS8110, UK CARES certificate), French standard(AFCAB, NF35-20-1), Germany standard(DIN 1045), ISO15835 and many other relevant domestic and foreign standards;


Comparison between upset forging parallel thread connection and rib peeling roll stamping connection. The picture in left is the cross section area of upset forging parallel thread connection after processing thread, the picture in right is the cross section area of upset forging parallel thread connection after processing thread. The left cross section area is apparently larger than the right one, moreover, molecular structure is tighter and hardness is better in rebar thread part of upset forging connection.



I.Upset forging parallel thread coupler,standard sizes:

12mm,14mm,16mm,18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 40mm, 50mm, including client's customized sizes, such as European countries customized 24mm, 34mm, 38mm, Korea customized 19mm, etc.. All coupler dimensions and inner thread can be customized. Moreover, we can also calculate coupler dimension and material according to client's rebar strength and international standards of after rebar connected.



1.black surface coupler,it is quite popular among international clients. Advantages are as below:

1)the coupler surface is oxide layer during production process, it forms a protective layer on coupler surface, with better anti-rust effect than white surface.

2)oxide layer destroys coupler surface, therefore it improves coupler flexibility and elongation in mechanics

3)oxide layer can fix with concrete more strongly


Coupler strength can meet Chinese standard(JGJ107), American standard(ACI318, ACI349, AC-133, ICC-ES), British standard(BS8110, UK CARES certificate), French standard(AFCAB, NF35-20-1), Germany standard(DIN 1045), ISO15835 and many other relevant domestic and foreign standards;

Coupler strength can reach 630MPa, 750MPa, 800MPa, 950MPa, 1050MPa, it is adjustable according to client's different requirements.

2.white surface coupler, it is produced by processing outer surface on coupler material according to client's requests.The advantage is that it makes the apperance looks more beautiful, but it will decrease the mechanical strength, and the anti-rust capability is lower than black one.

the standard sizes are:

12mm,14mm,16mm,18mm,20mm,22mm,25mm,28mm,32mm,36mm,40mm,50mm, including client's customized sizes. All coupler dimensions and inner thread can be customized. Moreover, we can also calculate coupler dimension and material according to client's rebar strength and international standards of after rebar connected.


Coupler strength can meet Chinese standard(JGJ107), American standard(ACI318, ACI349), British standard(BS8110), French standard(NF35-20-1), Germany standard(DIN 1045), ISO15835 and many other relevant domestic and foreign standards;

Coupler strength can reach 630MPa, 750MPa, 800MPa, 950MPa, 1050MPa, it is adjustable according to client's different requirements.



3.big chamfering coupler, the production requirements of this type is very high. Especially big chamfering processing, it must be processed by CNC production line, 100% comply with European standard of rebar coupler production。

rebar coupler sizes are12mm,14mm,16mm,18mm,19mm,20mm,22mm,24mm,25mm,32mm,34mm,36mm,40mm


Coupler strength can meet Chinese standard(JGJ107), American standard(ACI318, ACI349), British standard(BS8110), French standard(NF35-20-1), Germany standard(DIN 1045), ISO15835 and many other relevant domestic and foreign standards;

Coupler strength can reach 630MPa, 750MPa, 800MPa, 950MPa, 1050MPa, it is adjustable according to client's different requirements.

Type 2 rebar coupler


II.Our checking tools:



stadium, airport, exhibition center, high building, residential building, shopping mall, meeting center, railway construction, elevated and high-speed rail station, and other projects. Since 1987, we have been manufacturing upset forging parallel thread rebar coupler, at the same time, we are the first supplier of developing, manufacturing, producing, selling, using with all supporting, we have our own engineering service department, and more than 200 technical service workers onsite. According the requirements of reinforcement connection quality and technical innovation onsite, we will provide technical service and develop at any time, so as to provide more effective on-site feedback to JBCZ production headquarters. According some onsite problems, the production headquarters will improve our own products constantly, so that the technology of reinforcing steel bar connection is improved. According this effective way, the quality of JBCZ rebar coupler and machine have been effectively improved, only own satisfaction, so that can be assured to the customer!

The checking tools for Type 2 rebar coupler



Connection methods :



Parallel thread standard splice

Easy connection by bar rotation until full thread engagement . Parallel thread : no risk of thread mis-match. No risk of cross-threading.

Adding length splice

Even when both bars can’t be rotated, use a JBCZ standard coupler . The coupler is fully engaged onto the extended thread of the connecting bar.

The assembly is simply completed by butting the bars end to end and screwing back the coupler onto the first bar until full engagement.

Bridging splice

When the end of reinforcing bar can’t be closed (such as the situation happened during producing rebar cage) , JBCZ bridging splice is the method to solve this problem.  Two ends of bar are threaded to the standard length , then a ( bridging connection equipment ) is used to connect two reinforcing bars.

Reducing connection

When connect two bars with different diameters , in most situations , can reduce the rebar size with big diameter , then use standard coupler to connect it . But we recommend special reducing coupler , to avoid the difficult task of planning in advance the need of reducing couplers.

Terminal connection

It is a convenient alternative to hooked bars to provide end anchorages in congested areas. JBCZ standard anchorage heads are circular and have a net bearing area of 4 times or 9 times the cross-section of the bar.

Weldable couplers

For composite construction where concrete reinforcement bars must be welded to structural steel , use JBCZ weldable couplers, which are specially made from low carbon steel and which have a large chamfer for bevel welding.

We have American rebar connection, Chile rebar connection, Columbia rebar connection, Egypt rebar connection, UAE rebar connection, Australia rebar connection, Qatar rebar connection, Mexico rebar connection, ACI-318 Rebar coupler, AC-133 coupler, ICC-ES rebar coupler, type 2 rebar coupler, AC-133 coupler cyclic test, ACI-318 mechanical splice, American standard cyclic test rebar coupler, UK CARES rebar couplers, TA1-A test rebar coupler, TA1-B test rebar coupler, AFCAB rebar coupler, ISO15835 rebar coupler, Bartec  coupler, DCL approved rebar coupler, Slip test rebar coupler and etc.

Any rebar connection problem , please feel free to contact us.
